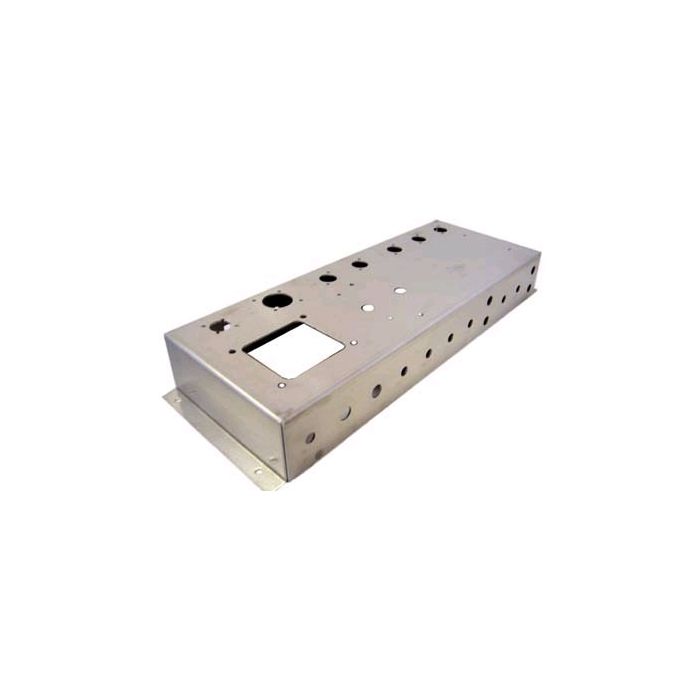

Amp-Chassis: 18 Watt Plexi

Alumium-Chassis for 18 Plexi Amp Kit
for use with tubes: 1 x EZ81, 2 x EL 84, 3 x ECC83

NOTE: matching gold PLEXI face and backplate can be ordered

Material: Aluminium, hardened, 2mm / 5/65

drilled/cut-outs for:
6x Novalsockets, d=19mm (for ECC83, EL84, EZ81)
1x Electrolytic capacitors d=35mm
1x lay-down mains transformer
several holes for upright standing outputtransformer, cable, capacitor clamps etc.

Frontside:
2x Mainsswitch
3x Inputjacks

1x Master volume

6x Potentiometer
1x Indictor/Pilot Light

Rearside:
1x Fuseholders
1x Footswitch
1x IEC-AC-Jack
1x Impedance Selector Switch
2x Speakerjacks

dimensions (cm): 46,35 x 16, 5 x 6,35
