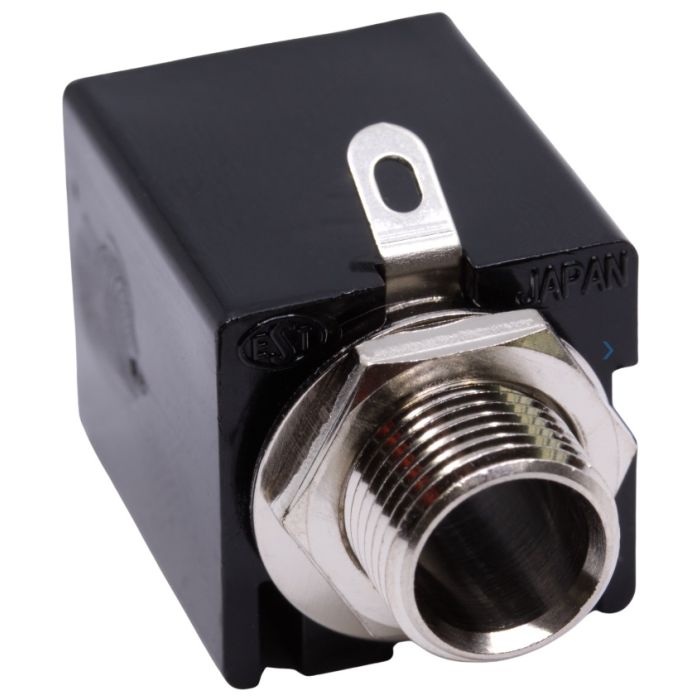

Jack - Boss Style, Enclosed, Stereo

High quality Japanese made ¼” stereo jack similar to those found in many Boss pedals. This jack has three solder lugs. One for the tip, one for the ring, and one for the sleeve. This style of jack has been widely used across the industry and can also be found in many Roland items. Includes nut and washer.

Body Height
16 mm
Body Length
19 mm
Body Width
16 mm
Bushing Length
7.5 mm
Bushing Threading
M9x0.75
Insertion And Extraction Force
0.5~4.0 kgs
Life Test
5000 Cycles
Max. Contact Resistance
50 mΩ
Min. Insulation Resistance
100 MΩ at 500VDC
Overall Length
33.5 mm
Withstanding Voltage
500 VAC for 1 Minute
