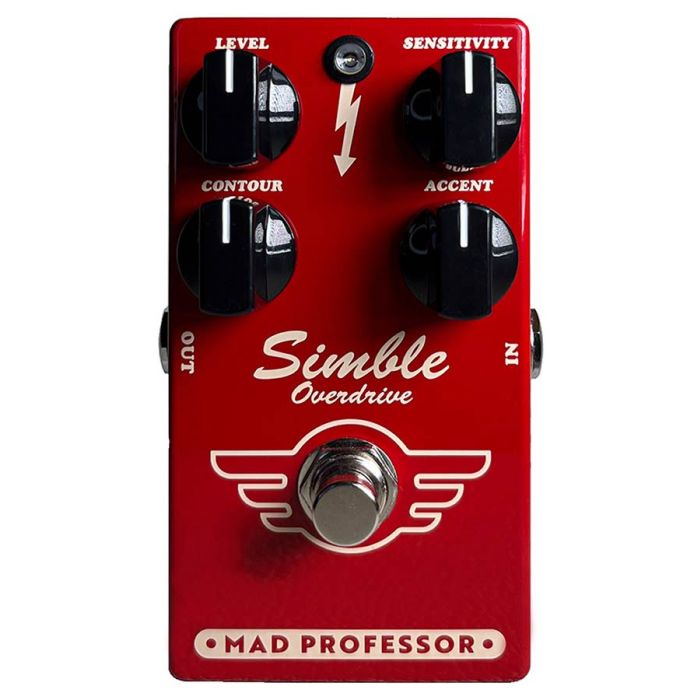

Mad Professor effect pedal Simble Overdrive Mk2

The Simble Overdrive Mk2 is an improved version of the original Simble, a transparent and organic sounding overdrive with wide dynamic range. This natural sounding overdrive pedal can work as a clean boost, "on the edge" crunch, or a sweet singing overdrive, always retaining the core tone of your instrument.

Mad Professor revisited the circuit with the original designer Lassi Ukkonen to bring his preferred improvements to this legendary pedal. The outcome was more open sound, more headroom and brightness from the contour to work effortlessly with any intstrument.

Controls:

level : output level
sensitivity: amount of distortion and compression
contour: tone of the output, unity at 12 o'clock
accent: tonal range of the distortion and pick attack, no effect turned fully counter clockwise, increased brightness turned clockwise.

Technical specifications:

current draw at 9VDC approx. 10 mA
input impedance 430 kohm
output impedance 50 kohm
voltage supply range 9-12v
true bypass

Power requirements:

6F22 9V battery or DC eliminator 2.1mm plug center negative and positive sleeve
The Simble Overdrive is protected against wrong DC eliminator polarity.
